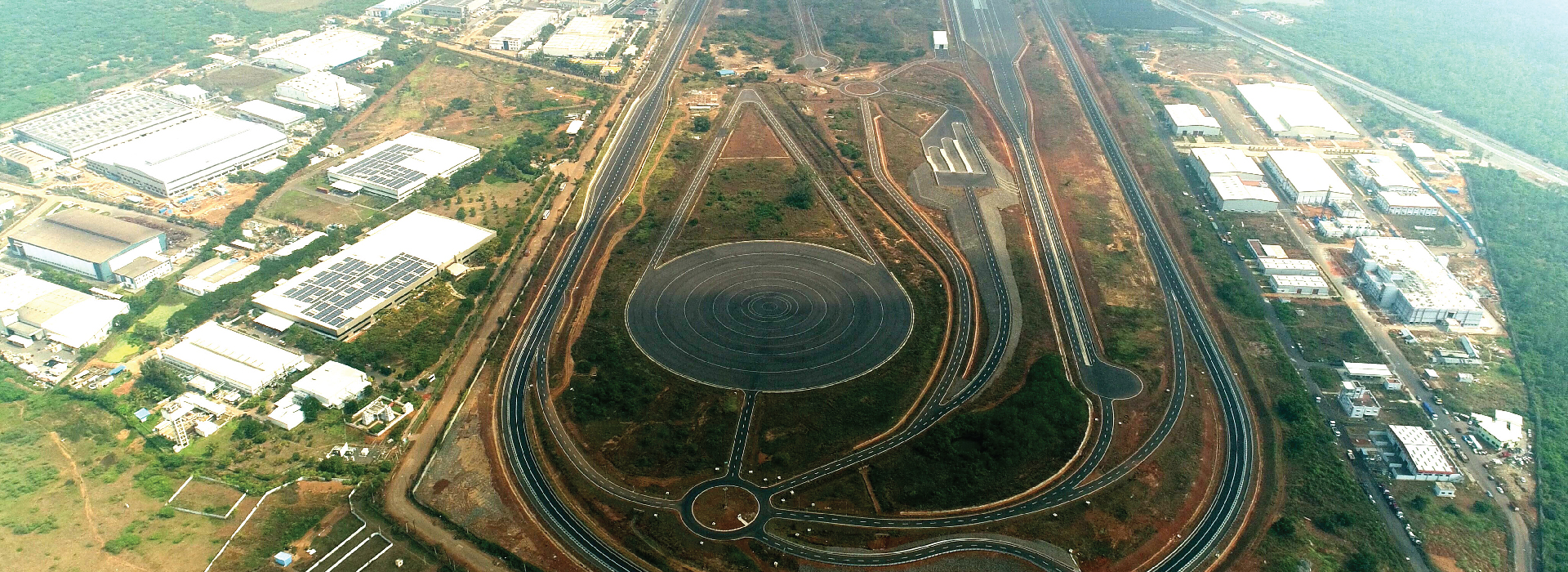

GARC has the High Speed Test Track, Braking Surfaces Test Track, External Noise Track, Steering Pad and various Test Hills Tracks to conduct the Homologation tests as well as the developmental tests as per the National and International standards.GARC 设有高速试验跑道、制动面试验跑道、外部噪声试验跑道、转向垫试验场以及各类试验坡道跑道，可依据国内外标准开展认证试验与研发试验。

External Noise Test Track 外部噪声测试跑道

Total Length 总长度	661m
ISO Surface (ISO 10844:2014)	40 m x 28 m
Acceleration Lane 加速车道	310m
Deceleration Lane 减速车道	311m
General Width 通用宽度	4m

Steering Pad 转向广场

Maximum Radius 最大半径	100 m
Acceleration Lanes 加速车道	350 m long on either side 两侧长均为350米
Uniform Cross Fall 统一横坡	1 % from the centre (Outward slope)距中心1%（向外倾斜）
Test Radius 测试半径	5.2m, 12.5m, 15m, 20m, 30m, 40m，50m, 60m ， 80m

Test Hills Track 试验坡道

Track 轨道	Gradient (%) 坡度（%）	Gradient (°) 坡度（度）	Total Length (m) 总长度（米）	Slope Length (m) 坡度长度（米）	Width (m) 宽度（米）	Surface 路面
Hill Track 1	6 to 8	3.4 & 4.6	135	37.4 each	5	Asphalt 沥青
Hill Track 2	12	6.8	95	55	4	Concrete 混凝土
Hill Track 3	18	10.2	75	35	4	Concrete 混凝土
Hill Track 4	28	15.6	59	18.5	4	Concrete 混凝土

Oval Track 椭圆跑道

Total Length	4468.6 m
Straight Length	1402.44 m (x2)
No of Lanes	2 of 4m width each
Service Lane Width	4m
Braking Zone	18m and 13m width
Banking Radius	225 m (Centerline)
Banking Angle	10%
Max Speed at Banking	120 km/h
Evenness(mm)	±3 (measurement by “Rule of Three” method)
Geometric Tolerance(mm)	±4 (measurement by “Topographical Survey” method)

Braking Surface Track

Total Length (m)	1250
Acceleration Zone (m)	645
Stabilisation Zone (m)	215
Braking Surfaces such as Ceramic (0.1 µ), Basalt (0.3 µ), High Friction Asphalt (0.9 µ) (m)	250 m
Frontal Safety Area (m)	140
Lateral Safety Area (m)	20.4 * 22.4
Braking Surface are provided with Sprinkler
